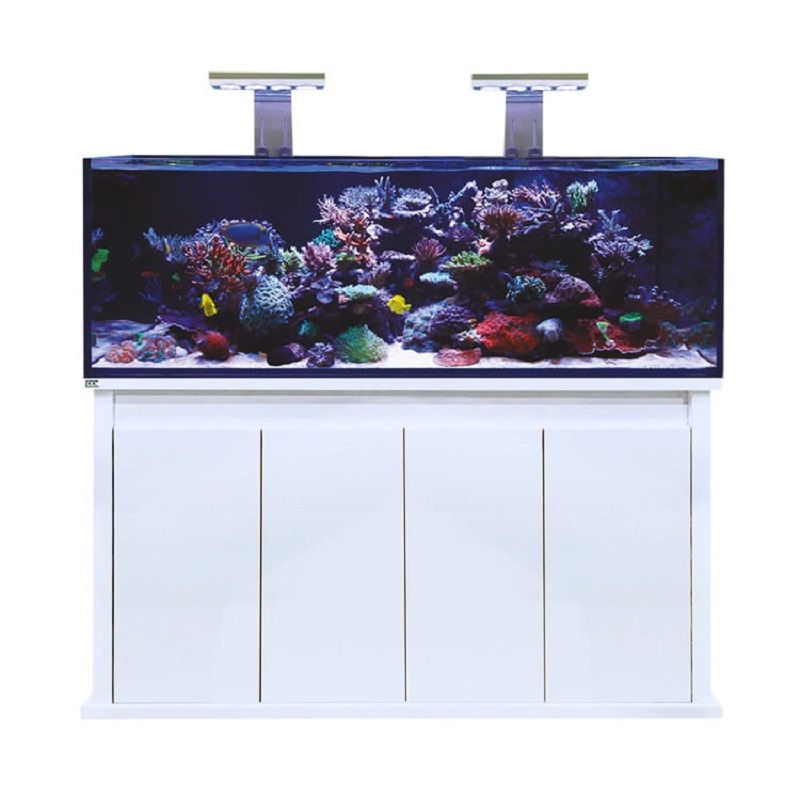

AQUARIUM
Built in low iron high clarity glass, the aquarium features a braceless design producing a clean and modern display with easy access for maintenance tasks.
A standard weir box can become an unattractive focal point in any aquarium, dictating aquascaping to try and hide it and interrupting flow patterns inside the tank. With this in mind the “invisible weir box” of the PRO-Reef models has been carefully designed to minimise intrusion into the aquarium whilst exceeding the functionality found in most aquariums.
By making the tank wider than it is tall we create a more balanced aspect ratio which greatly enhances the viewing experience, allowing easier and more natural aquascaping and coral placement.
CABINET
The PRO-Reef cabinet is designed to be tall to perfectly balance the aquarium and can be supplied flat-pack or pre-assembled, designed and built by D-D in the U.K to ensure a consistent high quality and an extremely strong cabinet.
The top, bottom and main structural uprights of the cabinet are made of 36mm waterproof board providing rigidity, excellent load bearing properties, giving the impression of a piece of furniture rather than just another tank cabinet.
There are two sections incorporated within the cabinet, the sump section and a second section for storage or designed to house a D-D DC750 chiller. The second section also has an adjustable shelf for general storage.
The tall cabinet provides good headroom for the use of taller equipment and ease of maintenance, we have also included a double fold back door and soft close hinges for even better access.
When installing an aquarium it is of the upmost importance to provide a level base, unlevelled cabinets can stress the glass and can result in an uneven water level in the aquarium. The D-D aquarium cabinet design includes heavy duty adjustable feet allowing for accurate levelling of the cabinet and aquarium.

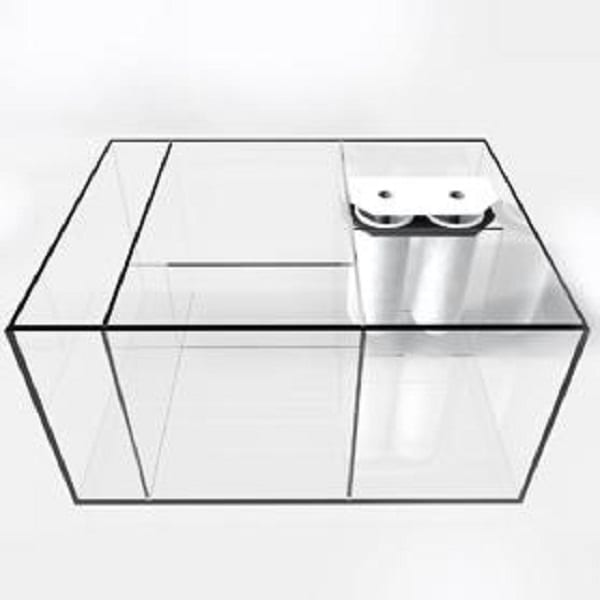

SUMP
There are as many ideas about sump design as there are hobbyists. Within D-D we have many decades of experience in designing, building and running large successful aquariums and have combined this knowledge to produce what we believe is the perfect sump layout for the space available.
The ultra-quiet twin pipe weir system is further refined at the sump level by including a section whereby the pipes are completely submerged resulting in a silent water return into the sump with no splashing or gurgling.
The water from that section overflows through twin filter socks which incorporate a diffused silencer plate to silence any water noise.
From there the filtered water flows into two large equipment compartments. These chambers can both hold equipment such as skimmers, media reactors, calcium reactors etc., or you can use one chamber as a refugium with Caulerpa/Chaeto. Here again there is flexibility to alternate these sections for those who prefer to skim before or skim after the refugium.
The final section is a generous sized return pump compartment which sits beside the integrated water top off reservoir located to the side of the sump.
ULTRA FLOW WEIR
All REEF-PRO tanks utilise our own specially developed Ultra-Flow weir comb.
The Ultra-Flow weir comb features horizontal and vertical drain slots allowing passage of about 30-50% more water, compared to a standard vertical comb, greatly reducing the water running height of the display aquarium.
The higher flow through the weir comb also allows for higher output return pumps to be used.
SPECIFICATION
• OVERALL DIMENSIONS – 150 x 60 x 148 (L x W x H in cm)
• CABINET – 150 x 60 x 92 (cm)
• AQUARIUM – 150 x 60 x 56 (cm)
• SUMP – 93L x 46W x 38T (cm)
• SYSTEM VOLUME – 500 Litres
• AQUARIUM VOLUME – 425 Litres
• SUMP VOLUME – 75 Litres
• TOP UP VOLUME – 22 Litres
• OUTLET PIPEWORK – Twin 32mm Standpipes
• RETURN PIPEWORK – 1 x 25 mm rigid pump pipework
• GLASS THICKNESS – 15mm
